Product Overview

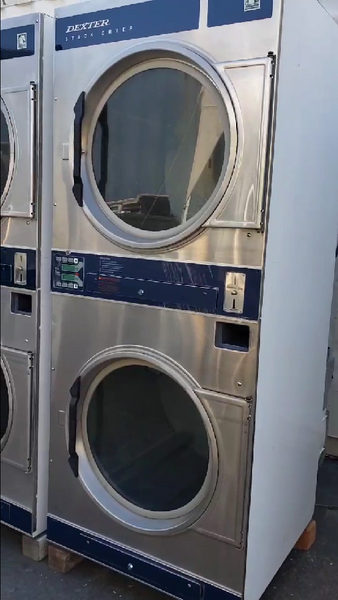

- Stack Dryer Net Weight is 685 pounds.
- Each Pocket has a drying Capacity of 30 pounds and volume 11.25 cubic feet.
- Each Cylinder size is 30 Inches in Diameter and Basket Depth is 27 1/2 inches, Door Opening is 22 11/16 inches.
- Over all Height (with legs) is minimum of 76 5/8 inches and maximum is 77 5/8 inches, Cabinet width is 31 1/2 inches and 47 5/16 inches Deep.
- Minimum Necessary Service Clearance Behind machine is 18 Inches.
- Temperature Regular / Hot is 150-190 Fahrenheit, factory setting is 175 Fahrenheit.
- Permanent Press/ Medium 120-170 Fahrenheit, factory setting is 150 Fahrenheit.
- Delicate/ warm 110-150 Fahrenheit, factory setting is 125 Fahrenheit.
- Electrical power is 120 volts, 60 hertz, 1 phase, 30 Amp.
- Motors Horse power per pocket is 1/2 Horse power. Running Amps for complete dryer is 19. 6 Amp.
- Running direction is counter clock wise with the dryer speed 47 R P M.
- Natural gas supply line 4 inches to 10 inches W. C. Natural burner manifold 3 1/2 inches W. C.
- L. P supply line is 11 inches to 14 inches W. C., L. P. burner manifold is 11 inches W. C.
- Inlet line size is 1/2 inches N P T.
- B T U input 80,000
